DZS
We collaborate closely with our OEM partner, DZS—a global leader in access networking and cloud software solutions. We empower communications service providers to rethink their EDGE and transform their businesses and network infrastructure, positioning them as the experience providers of the future.
The Connected Edge
In the first episode of our webcast series, we speak with Gunter Reiss, CMO of DZS, to explore how the partnership between Cherry & White and DZS creates a winning formula for our customers.
Access
The DZS Velocity Optical Line Terminal (OLT) portfolio, environmentally hardened across the entire range of solutions, has form factors ranging from fixed 1RU units through 2-slot, 6-slot, 14-slot and 16-slot chassis systems. It is the industry’s broadest access portfolio.
Complemented by system-on-a-card technology that is common for all systems, DZS Velocity empowers service providers to leap to multi-gigabit services at scale by enabling rapid transition from GPON to XGS-PON and gigabit Ethernet to 10 gigabit Ethernet and on to 50G/100G services via any service port across the range of DZS systems, including stackable options.

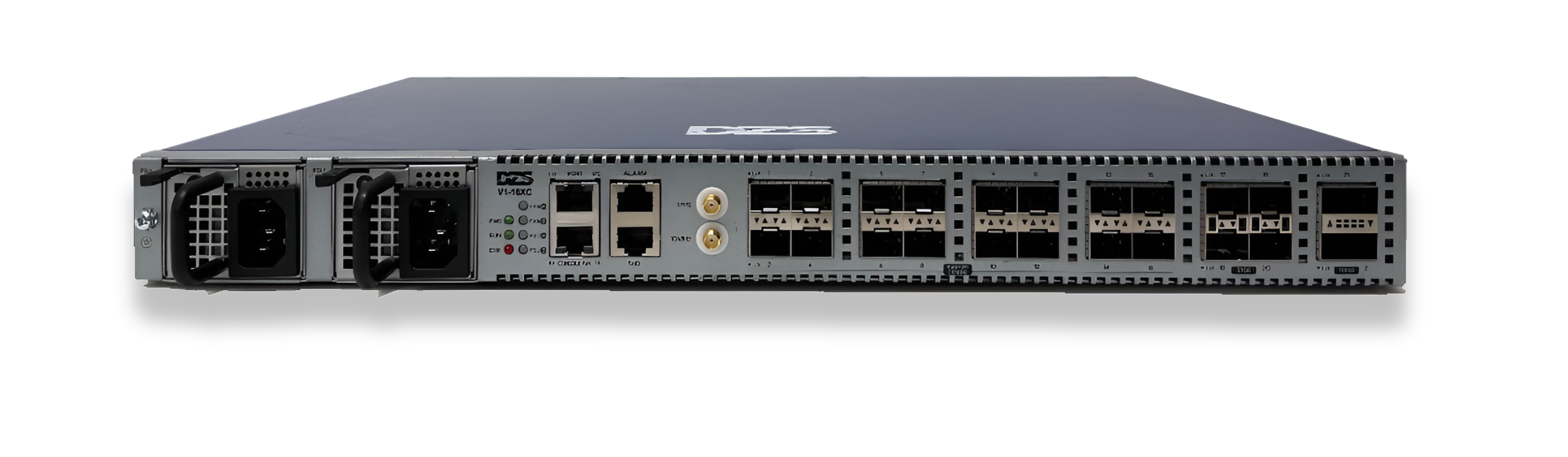

V1-16XC
A new generation XCelerate™ OLT with the flexibility to choose GPON, XGS-PON or GPON+XGS-PON (Combo) for cost-effective 10Gig services.
- Compact 1U low profile, high density
- 360Gbps switching capacity
- 16-port XGS-PON/GPON combo SFP+ interfaces
- Fixed 4-port 25GE SFP28 and 2-port 100G QSFP28 optical interfaces
- XGS-PON ODN class N1/N2/E1 compliant with ITU-T G.9807.1

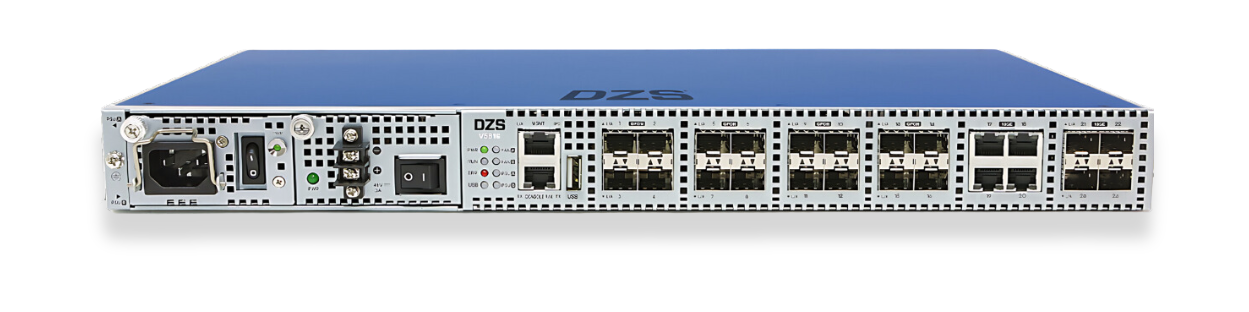

V5816
Cost-effective, Compact 16 port GPON OLT for lower density deployments.
- 1RU Compact Size
- 16 GPON ports
- 4x10GE (SFP+) , and 4x1GE (RJ45) Uplink ports
- Redundant, replaceable, AC or DC power supply options
- Comprehensive Layer-2 protocol support
- IGMP support for IPTV applications
- Managed via DZS Element Manager
- SNMPv2/v3 with RMON and Alarming

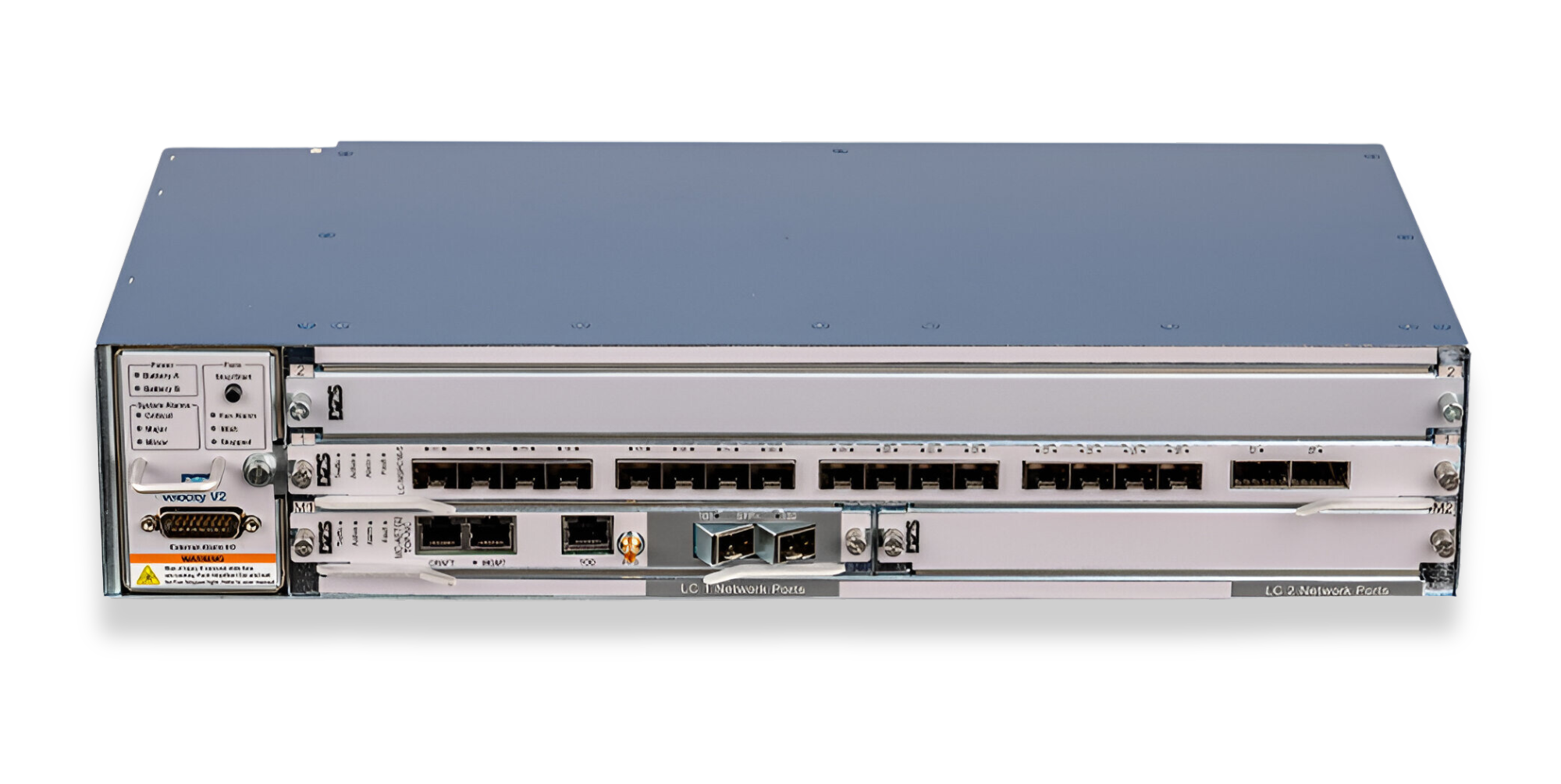

V2
Compact high-capacity solution for Hyper-Fast SDN Access Networks.
- Any services – Residential or Business Broadband, and Mobile xHaul
- GPON, XGS-PON, GPON+XGS-PON (Combo), 1GigE, and 10GigE Active Ethernet fiber access+ Meets ETSI EN 300 standard
- Industrial temperature
- sdNOS™ operating system software for modular software and cloud based network functions
- Intuitive, comprehensive management, with CLI, and DZS Cloud Access Edge Domain Orchestrator
Subscriber
Consumer-grade Access Points and Service Gateways designed to meet service provider and end-user requirements for high-speed access and in-home services.
Using innovative hardware designs and industry leading software services, DZS offers the subscriber best of class WiFi experience and the ability to manage their personal network.
The perfect combination of intelligence, simplicity and carrier-grade performance.

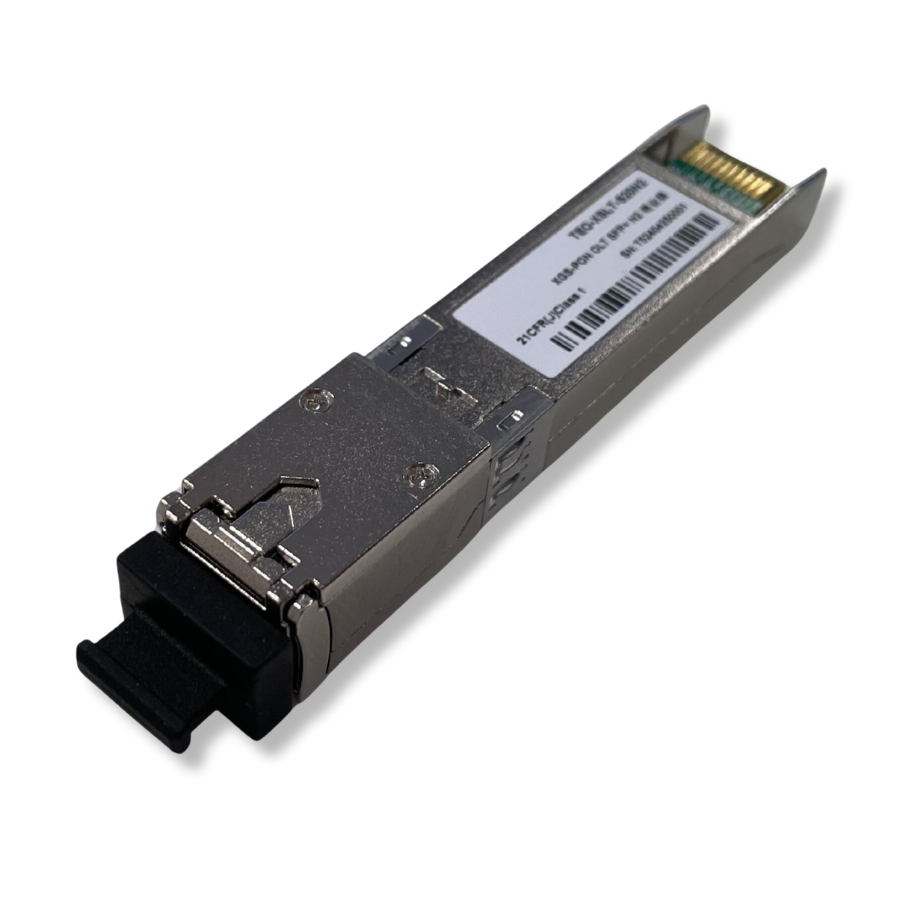

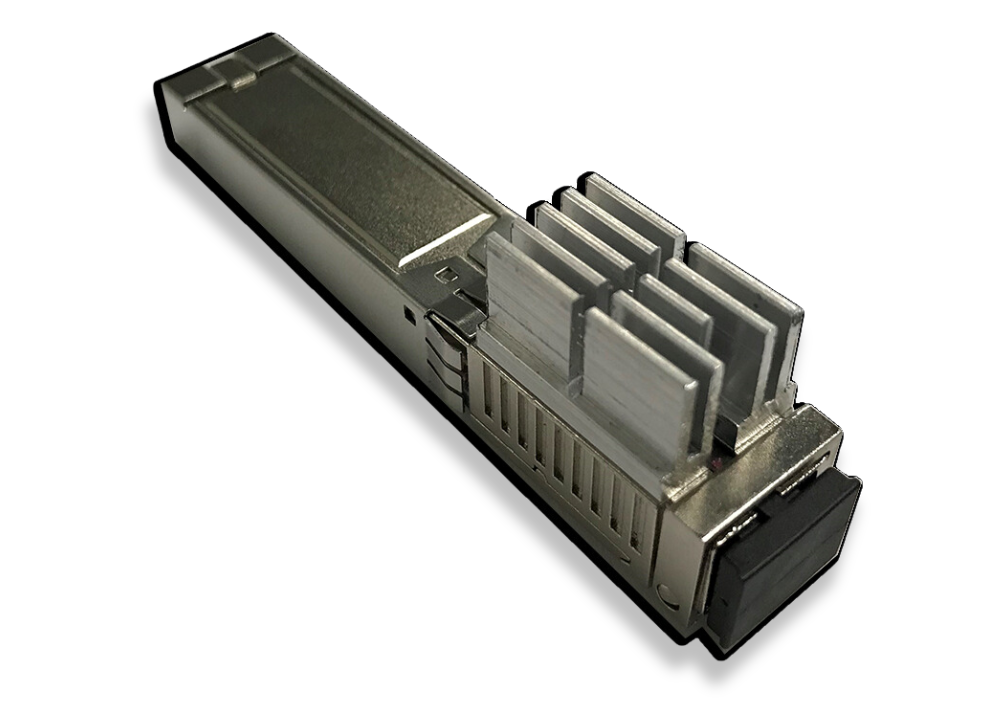

5311XP
XGS-PON ONT for Bridging Applications in a Standard SFP Enclosure
- Compliant with ITU-T G.9807.1 XGS-PON Standard
- Supports Symmetrical 10Gbps Data Rates.
- MSA-Compliant SFP+ Footprint with SC/APC receptacle.
- Ideal for FTTH, Mobile Backhaul, and Business Deployments
- IEEE 1588v2 and Y.1731 Support
- Triple-Play QoS and Multicast Video

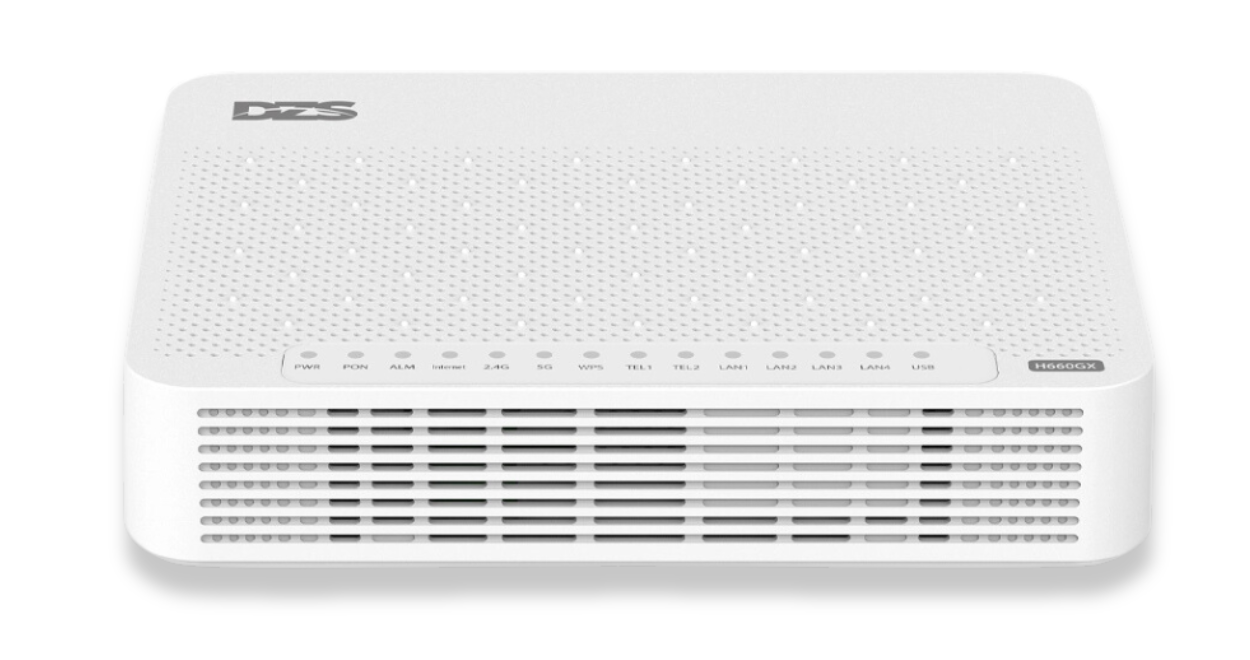

H660GX
The first generation 802.11ax G-Series ONT enables subscribers to enjoy multimedia services over wireless with DZS leading-edge GPON technology.
- Supports 2.5Gbps/1.25Gbps (Downstream/Upstream) with integrated GPON WAN interface
- Four gigabit multi-rate 10/100/1000M Ethernet interfaces
- Two POTS interfaces compliant to SIP telephony standards
- Dual-band 2.4GHz 2×2 802.11ax, 5GHz 2×2 802.11ax wireless
- One USB 3.0 port

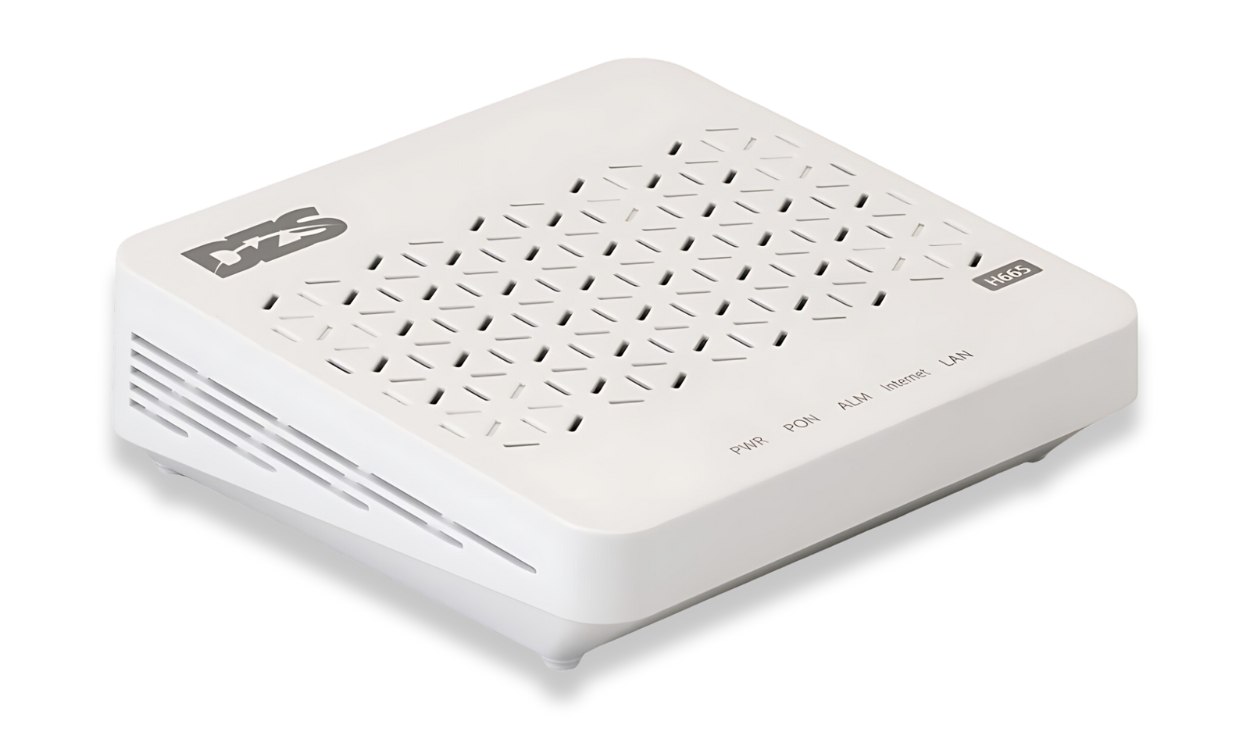

H665
Enables subscribers to enjoy multimedia services with DZS leading-edge GPON technology.
- Supports 2.5Gbps/1.25Gbps (Downstream/Upstream) with integrated GPON WAN interface
- One multi-rate 10/100/1000M Ethernet interface
Optical
Mobile Transport products are purpose-built routers, switches and gateways designed to facilitate the deployment of 5G networks around the world. We primarily target use cases where O-RAN is driving transformational change including packet-based fronthaul, non-traditional cell sites and In-building 5G small cells.
The new Saber Optical Transport solutions will transform how service providers think about deploying and managing high bandwidth 100G and 400G optical transport and services, pushing high bandwidth transport closer to their customers out to the very EDGE of their network.

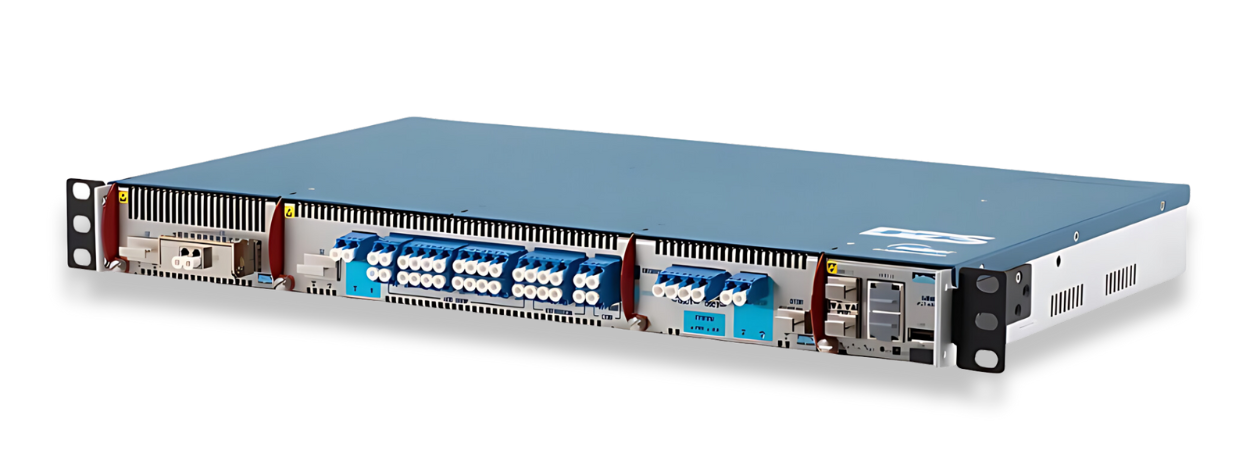

Saber 4400
First-of-its-kind environmentally hardened, modular transport platform delivers up to 400 Gbps per wavelength and the industry’s smallest form factor CDC Flex-Grid ROADM
- Hardened, extended temperature range (ETR)
- Full 2-degree CDC-Flex Grid ROADM-4400 (can be expanded to 8-degrees), NEBS-3 compliant
- Hot-swappable one-slot, two-slot, three-slot, four-slot sleds/modules for network L0 to L3 edge applications
- Hot-swappable management module
- Multiple units can be stacked and appear as a single network element with a single management IP and redundant management hardware
- GR-3108 OSP Class 2 compliant
- Advanced timing options including integrated GPS module for GrandMaster timing
- Secure software management
- Trusted protection module (TPM)
- SNMP and NETCONF/YANG
- Integrated with DZS Xtreme
- Graphical Shelf Manager (OSM)

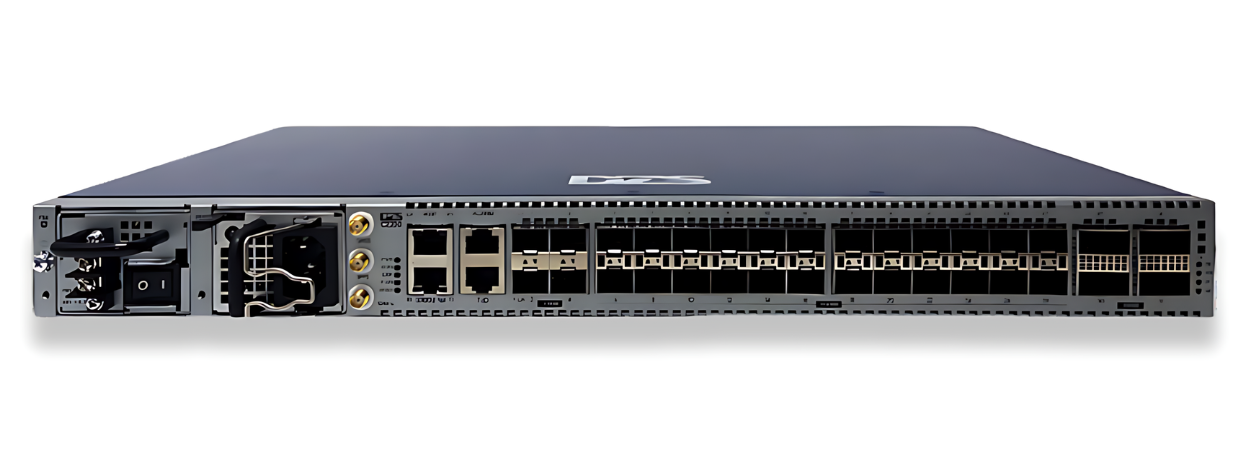

Saber 2200
An Ethernet Switch, Mobile Fronthaul Switch and Layer 2 Aggregator with support for 100G Coherent OpenZR+ and XR Optics.
- High-capacity, Ethernet switch for rack mounts
- eCPRI/CPRI fronthaul switch for 5G/4G
- Time-sensitive networking features
- High capacity and very low latency
- Operates as Timing Grand Master with integrated GNSS Receiver
- Support for OpenZR+ and XR Optics
- 1/10/25G to 100G Layer 2 Aggregation to DZS Saber 4400
- NETCONF/YANG

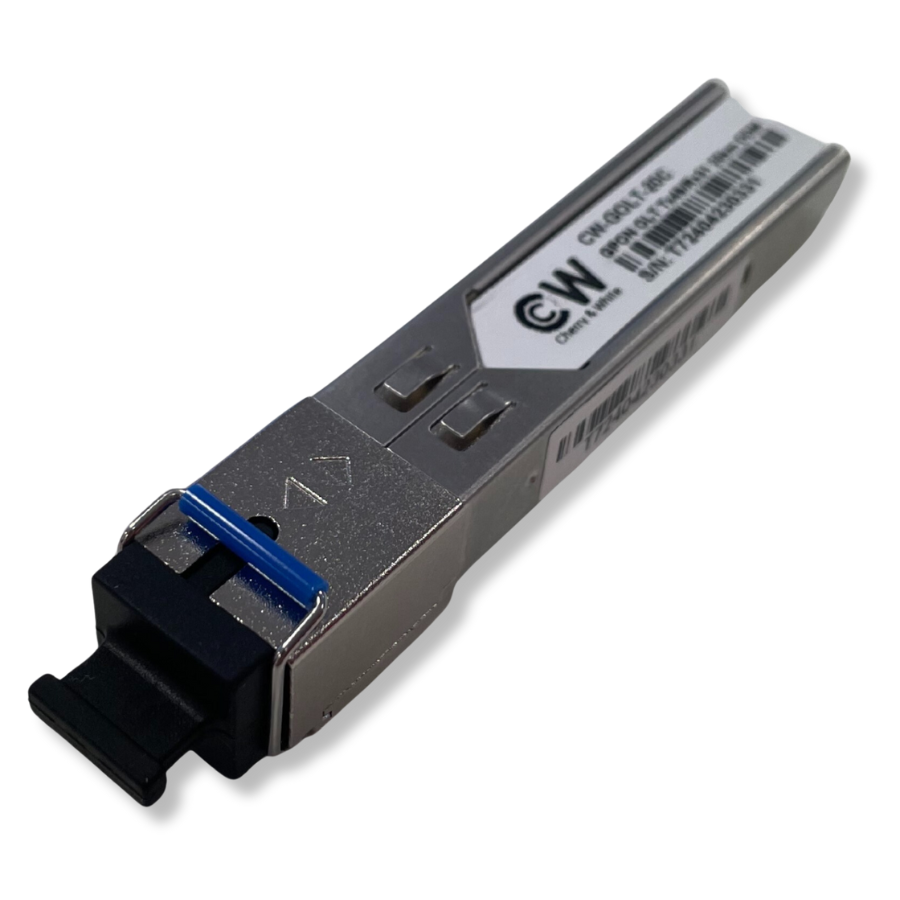

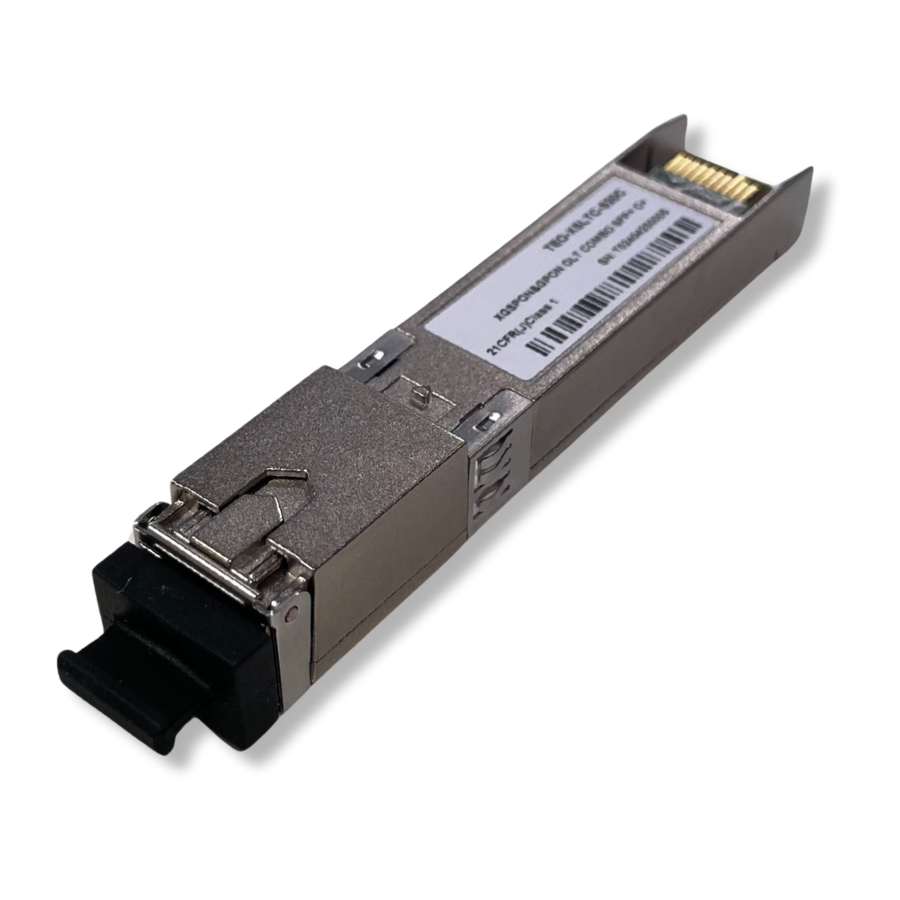

GPON, XGSPON & Combo PON Compatible SFPs
Enquire about how we can support you with
DZS Technology
