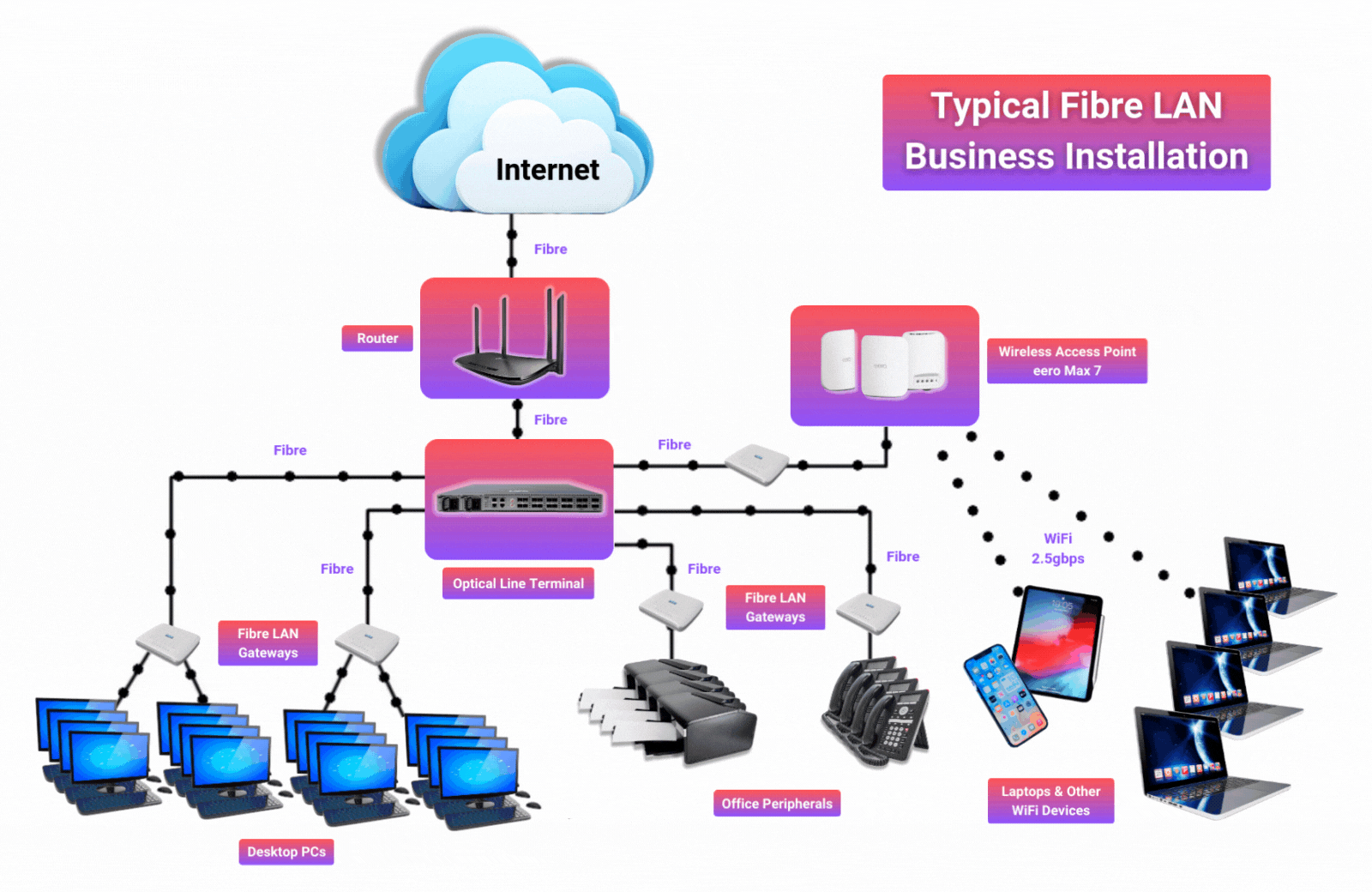

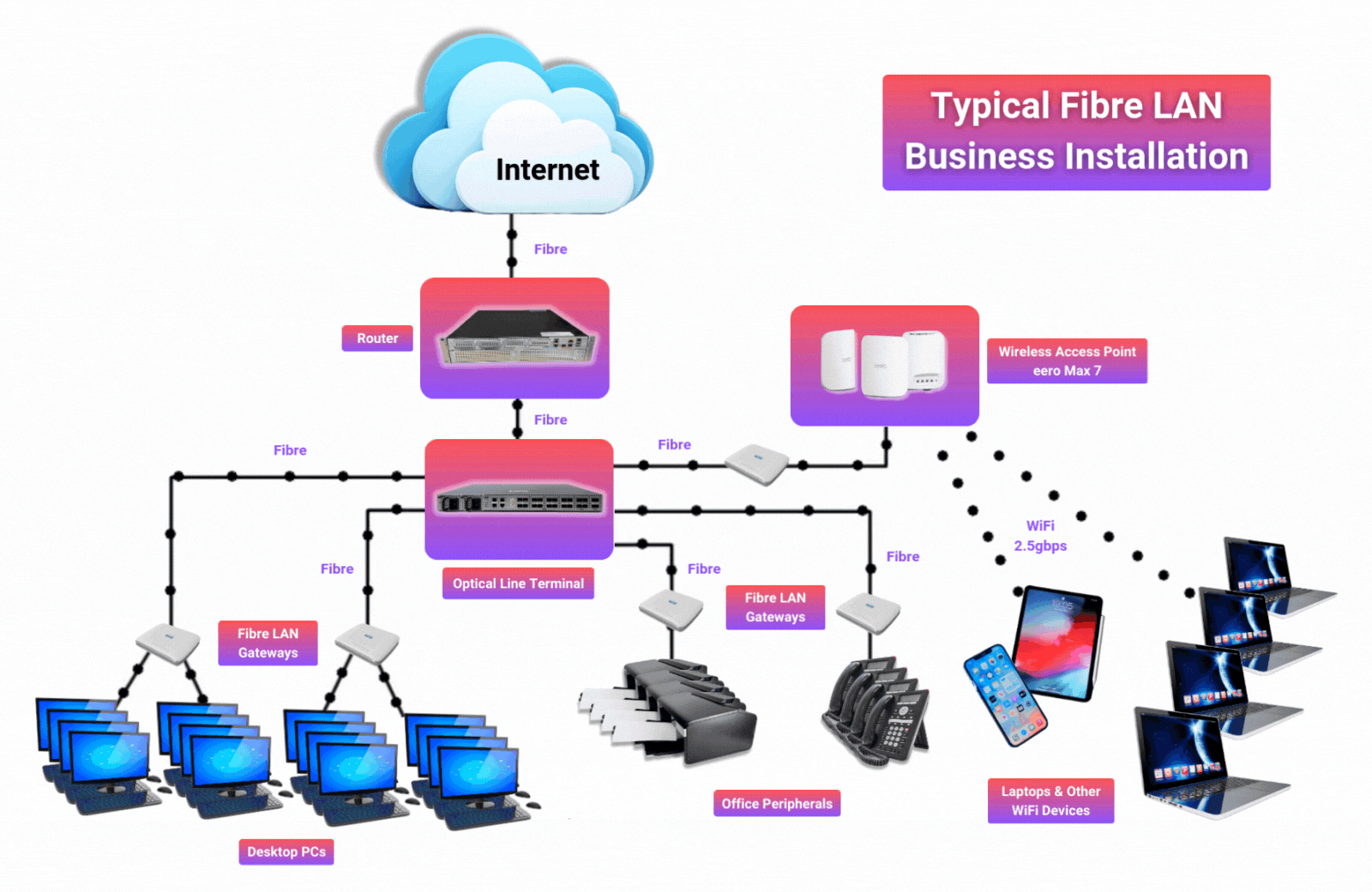

Fibre LAN is a high-speed local area network (LAN) infrastructure that uses fibre optic cables instead of traditional copper-based Ethernet cables. It is commonly implemented using Passive Optical LAN (POL) technology, which is based on Gigabit Passive Optical Network (GPON) or Active Ethernet technology
High-Speed Connectivity
- Delivers ultra-fast internet and data transfer speeds.
- Reduces latency for smoother communication and operations.
Future-Proofing
- Easily expands to accommodate business growth.
- Supports increasing bandwidth demands without major infrastructure upgrades.
Longevity
- Passive optical components have fewer points of failure.
- Fibre infrastructure is durable and requires less frequent maintenance.
Energy Efficient
- Uses less power than traditional copper-based networks.
- Contributes to a greener and more sustainable work environment.
Cost Efficiency
- Reduces cabling and network equipment costs.
- Lowers power consumption, resulting in long-term savings.
Network Security
- Optical fibre is more secure against eavesdropping and interference.
- Centralised management enhances access control.
Simplified Infrastructure
- Eliminates bulky copper cabling and network closets.
- Supports a clean, organized, and efficient office layout.
Multiple Services
- Can handle voice, video, and data traffic on the same infrastructure.
- Eliminates the need for separate networks, reducing complexity.
V1-16XC
A new generation XCelerate™ OLT with the flexibility to choose GPON, XGS-PON or GPON+XGS-PON (Combo) for cost-effective 10Gig services.
- Compact 1U low profile, high density
- 360Gbps switching capacity
- 16-port XGS-PON/GPON combo SFP+ interfaces
- Fixed 4-port 25GE SFP28 and 2-port 100G QSFP28 optical interfaces
- XGS-PON ODN class N1/N2/E1 compliant with ITU-T G.9807.1
2804GN
Next generation plenum-rated Fibre LAN PoE ONT optimized for desktop and wall-mount installations using DZS leading-edge GPON technology.
- Supports 2.5Gbps/1.25Gbps (Downstream/Upstream) with integrated GPONWAN interface
- Four gigabit multi-rate 10/100/1000M Ethernet interfaces
- 802.3af, at, and bt PoE++ compliant
- Up to 240W of PoE power per ONT
- Enterprise LAN features (802.1x, LLDP)
- UL-2043 plenum rating
- Fibre management tray option
eero Max 7
- Wireless specifications – Tri-band Wi-Fi 7 (2:4:4)
- Channel support – 320 MHz
- Recommended ISP speed plans – Up to 10 Gbps
- System Performance – Wireless: Wired client speed up to 9.4 Gbps
Wireless gateway client speed up to 4.3 Gbps
Wired leaf speed more than 5 Gbps
Whole-home wireless speed up to 2.5 Gbps - Ethernet ports – Two 2.5 GbE ports, Two 10 GbE ports
- Coverage – 1 device: Up to 2,500 sq. ft.
2 devices: Up to 5,000 sq.ft.
3 devices: Up to 7,500 sq. ft. - Number of supported devices – 200+ devices
- Smart home connectivity – Wifi, Zigbee smart home hub, Thread & Matter
- Backwards compatibility – Yes**
Industries That Benefit from Fibre LAN & Why
-
Healthcare – Enables fast and secure transfer of medical records, imaging, and telemedicine services.
-
Finance & Banking – Ensures secure, low-latency transactions and real-time data analytics.
-
Education – Supports seamless online learning, virtual classrooms, and cloud-based research.
-
Media & Entertainment – Handles high-resolution video streaming, editing, and live broadcasting.
-
Manufacturing & Industry 4.0 – Powers automation, IoT devices, and real-time production monitoring.
-
Government & Defence – Enhances secure communication and prevents cyber threats.
-
E-commerce & Retail – Improves online shopping experiences and real-time inventory management.
-
Telecommunications & IT – Provides the backbone for high-speed internet, cloud computing, and data centers.
Our expert engineers will collaborate with you to install, customise, and configure a Fibre LAN solution tailored to your business and operational needs. We also provide ongoing support for your Fibre LAN network, with options for break-fix services or comprehensive support contracts.
